KIRASRG 001 (FIRE)

KIRASRG 001 (FIRE)

SILICONE COATED FIBERGLASS FIRE SLEEVING

Product Description

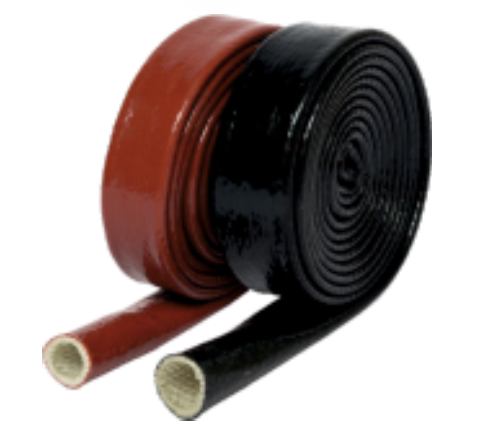

The KIRASRG 001(FIRE) Fire Sleeving is constructed from premium fiberglass yarns braided into a flexible substrate, and it is subsequently covered in premium silicone rubber that has fully cured. It is made to shield cables, wires, and hoses from the dangers of intense heat and sporadic direct flame. The KIRASRG 001(FIRE) Fire sleeve can withstand a molten splash at 2000°F (1093°C) and provides continuous protection up to 500°F (260°C).

Core Applications

Protective covering for cables, ropes, and hoses
Sheath for bundling of multiple wires
Insulation covering to prevent heat loss from hot metal hoses and piping
Steel Mills, Nonferrous smelting mills, Fuel supply lines, Steam, hot water, and hot oil lines, Hoses, and cables close to furnaces, boilers, and engines
Thermal insulation covering hoses and piping means reduced energy costs

Properties

SLEEVING MATERIAL

Fiberglass Multifilament and Silicone

EXPANDABILITY

1:2 on request

THERMAL CLASS

Class - H

Standard Colour

Brick Red & Black

OPERATING TEMP

-60°C to +155°C

SHELF LIFE

25+ Years under Recommended Storage Conditions

SIZES

6mm to 100mm

DIELECTRIC STRENGTH

10,000 Volts

Dimensions & Standard Packing

Download

Dimensions & Standard Packing
Inner Dia	Dia Tolerance	Wall Thickness	Standard Packing
6.0mm	± 0.5mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
8.0mm	± 0.5mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
10.0mm	± 0.5mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
12.0mm	± 1.0mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
15.0mm	± 1.0mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
20.0mm	± 1.0mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
25.0mm	± 2.0mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
30.0mm	± 2.0mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
35.0mm	± 2.0mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
40.0mm	± 2.0mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
50.0mm	± 2.0mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
60.0mm	± 3.0mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
70.0mm	± 3.0mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
95.0mm	± 3.0mm	Min. 2.0mm (or) 3.00mm On Requirement	25 Mtrs
