KIRASRG 001 HT
KIRASRG 001 HT

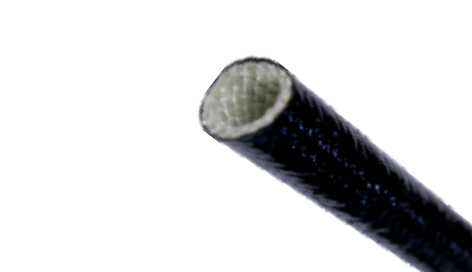

Silicone Elastometer Coated Fiberglass Sleeving - High Temperature
Product Description
KIRASRG 001 (HT) is a flexible fiberglass sleeve coated with silicone elastomer and featuring an outer layer of fiberglass braid. The over braid bonding procedure improves assembly performance and gets rid of the long-term handling effects of operator dermatitis by adhering the over braid to the silicone-coated substrate and minimizing end fray. The majority of acids, oils, organic solvents, and water do not affect the sleeving. Additionally, almost all electrica l grade varnishes and impregnation systems appropriate for all VPI applications are compatible with it.
Core Applications
Rotation machine Core Insulation
Instrumental Panel Harness
Engine Compartment Harness
Modular Wire Harness.
Motor and Generator Lead Wire protection.
Tubing
Oil Filled Transformers Lead wire protection
Properties
SLEEVING MATERIAL
Fiberglass Multi filament and Silicone Elastomer
EXPANDABILITY
1:2
THERMAL CLASS
Class - H
Standard Colour
Natural & Black, Other Colors on request
OPERATING TEMP
-60°C to +250°C
SHELF LIFE
25+ Years under Recommended Storage Conditions
SIZES
0.5mm to 50mm
DIELECTRIC STRENGTH
A–7000 Volts B–4000 Volts C–2500 Volts
Dimensions & Standard Packing
Download
Inner Dia | Dia Tolerance | Wall Thickness | Standard Packing |
---|---|---|---|
0.5mm | ± 0.2mm | 0.50mm ± 0.20mm | 100 Mtrs |
1.0mm | ± 0.3mm | 0.50mm ± 0.20mm | 100 Mtrs |
2.0mm | ± 0.3mm | 0.50mm ± 0.20mm | 100 Mtrs |
3.0mm | ± 0.3mm | 0.50mm ± 0.20mm | 100 Mtrs |
4.0mm | ± 0.5mm | 0.50mm ± 0.20mm | 100 Mtrs |
5.0mm | ± 0.5mm | 0.50mm ± 0.20mm | 100 Mtrs |
6.0mm | ± 0.5mm | 0.50mm ± 0.20mm | 100 Mtrs |
8.0mm | ± 0.5mm | 0.50mm ± 0.20mm | 100 Mtrs |
10.0mm | ± 0.5mm | 0.50mm ± 0.20mm | 100 Mtrs |
12.0mm | ± 1.0mm | 0.65mm ± 0.20mm | 50 Mtrs |
14.0mm | ± 1.0mm | 0.65mm ± 0.20mm | 50 Mtrs |
16.0mm | ± 1.0mm | 0.65mm ± 0.20mm | 50 Mtrs |
20.0mm | ± 1.0mm | 0.65mm ± 0.20mm | 50 Mtrs |
25.0mm | ± 2.0mm | 0.65mm ± 0.20mm | 50 Mtrs |
