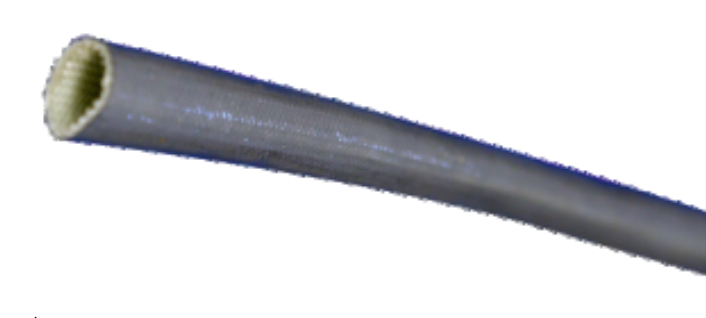

KIRATEX 1102

TEX SILICONE COATED FIBERGLASS SLEEVING

Product Description

KIRATEX 1102 is an aluminum-coated insulative fiber glass sleeving made of fiberglass multifilament. Its components are made to tolerate high temperatures, but they also need to stay at a constant temperature in order to function well and provide good insulation.

Core Applications

  • Alternator core winding

  • Instrumental Panel Harness

  • Engine Compartment Harness

  • Modular Wire Harness

  • Motor and Generator Lead Wire protection

  • Tubing

  • Oil Filled Transformers Lead wire protection

Properties

SLEEVING MATERIAL

TEX Fiberglass Filament and Silicone Resin

FLAMMABILITY

VW - 1

THERMAL CLASS

Class - H

Standard Colour

Grey

OPERATING TEMP

-60°C to +250°C

SHELF LIFE

25+ Years under Recommended Storage Conditions

SIZES

0.5mm to 50mm

Dimensions & Standard Packing

download

Download

Dimensions & Standard Packing
Inner Dia Dia Tolerance Wall Thickness Standard Packing
0.5mm ± 0.2mm 0.50mm ± 0.20mm 100 Mtrs
1.0mm ± 0.3mm 0.50mm ± 0.20mm 100 Mtrs
2.0mm ± 0.3mm 0.50mm ± 0.20mm 100 Mtrs
3.0mm ± 0.3mm 0.50mm ± 0.20mm 100 Mtrs
4.0mm ± 0.5mm 0.50mm ± 0.20mm 100 Mtrs
5.0mm ± 0.5mm 0.50mm ± 0.20mm 100 Mtrs
6.0mm ± 0.5mm 0.50mm ± 0.20mm 100 Mtrs
8.0mm ± 0.5mm 0.50mm ± 0.20mm 100 Mtrs
10.0mm ± 0.5mm 0.50mm ± 0.20mm 100 Mtrs
12.0mm ± 1.0mm 0.65mm ± 0.20mm 50 Mtrs
14.0mm ± 1.0mm 0.65mm ± 0.20mm 50 Mtrs
16.0mm ± 1.0mm 0.65mm ± 0.20mm 50 Mtrs
20.0mm ± 1.0mm 0.65mm ± 0.20mm 50 Mtrs
25.0mm ± 2.0mm 0.65mm ± 0.20mm 50 Mtrs
